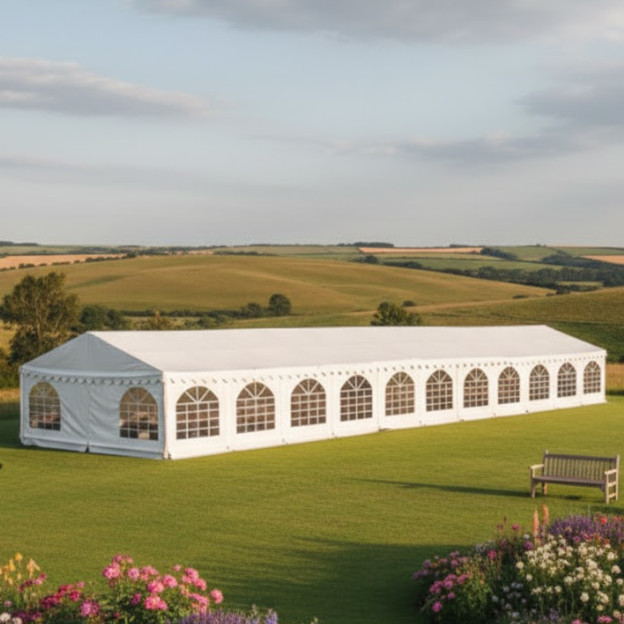

6x34m Marquee Size & Capacity
Size
Width: 6.00m
Length: 34.00m
Area: 204m²
165-330 standing capacity
Round table Capacity
110-220 seated
Theatre Style Capacity
160-320 seated
Trestle Table Capacity
100-198 seated
Call us today: 01306 876767
Free Mainland UK shipping on all Marquee orders
Call us on 01306 876767
🚚 Next Day Delivery and Same Day Pickup Available 📦
DIY Marquees are very useful and flexible, they can be used to gain a room by attaching to a house or connected to another marquee to cover larger areas.
£6,960.00
| Weight | 1200 kg |
|---|---|
| Dimensions | 200 × 120 × 100 cm |
| Width (metres) | 6m |
| Length (metres) | 34m |
| Side Height | 2.3m |
| Apex Height | 3.3m |
| Cover material | 650gsm PVC |
| Frame | Ultimate 54mm |
| Capacity Seated | 225 |
| Capacity Standing | 320 |
| Fire Retardant | Fire Retardant to BS5438 & BS7837 |
| Ground Bars | Included |
| Roof Braces | Included |
| Eaves Braces | Included |
| Gable Uprights | Included |
| Leg Braces | Included |
| Tensile Strength | 1843N |
| Seams | Welded & Reinforced |
| Rain Skirt | Yes (on all 4 sides) |
| Edge of Roof Style | Wave-drape |
| Colour | White |
| Step by Step Instructions | Yes |
| Warranty | 12 Months Manufacturers Warranty |
| Spare Parts Available | Yes |
| Metalwork Diameter | 50/54mm |
| Interchangeable Sides | Yes |
| Linings | Available |
| Roof angle | 20 degree pitch |
| Sides | Sides Included |
| Style | Clear Span |
Width: 6.00m
Length: 34.00m
Area: 204m²
165-330 standing capacity
110-220 seated
160-320 seated
100-198 seated

Our marquee covers use rip-stop technology making them tear resistant and long-life. There are many types of marquee PVC but we make sure only to use high-quality Duracoretex™ material. Covers are 100% waterproof with high-frequency welded seams, fire retardant to to BS5438 & BS7837 and UV stabilised.
Unlike other manufacturers we design our marquees with the gable triangle incorporated into the rest of the roof. This makes the end of the marquee more wind-resistant as it reduces the size of the end panel and therefore billowing in windy conditions.
| Choose the side panel configuration suitable for you: Standard: Georgian side windows + zipped wall panels Panoramics: Panoramic side windows + zipped wall panels All walls: Wall panels (2 with zips) |
|
| Roof lining: transforms the interior by hiding the metalwork in the roof Roof and curtain/wall linings: wall linings cover the PVC walls whilst curtain linings add a finishing touch by hiding the metal legs (linings can be used as either walls OR curtains) Roof, wall, curtain and swag linings: Swags add a gathered finish around the pelmet of the roof lining (includes walls and curtains) |
|
| Carpet flooring: Gives a fantastic finish in any marquee, nailed in place to give a smooth trip-free surface (suitable for high heels). Includes waterproof underlay and nails. Carpet is supplied on a 2m wide roll. | |
| Tie down kit: Strongly recommended for anchoring the marquees down on soft surfaces. Consists of large metal stakes and ratchet straps (available in white or orange) | |
| Over strap kit: Recommended for anchoring the marquees down during the winter in exposed areas. Consists of four 1m long metal stakes and two 2″ wide x 15m long ratchet straps | |
| White marquee festoons: A string of 10 x LED bulbs that can fit above the roof lining.
Retro marquee festoons: A string of hanging retro style bulbs with a long filament. |
|
| Carry bags and boxes: Ideal for storing and transporting your marquee though we should point out that the marquee does arrive in sturdy cardboard boxes. | |
DIY Marquees are designed to be put up by anyone without professional training or prior knowledge of marquees.
Assembly instructions can be downloaded here. Alternatively give us a call on 01306 87 67 67 and we’ll email you a copy.

We will contact you within 1 working day (usually immediately) to confirm the delivery day (usually 2-3 working days). If you have any preference on delivery day please let us know and we will happily arrange delivery accordingly.
Your marquee will arrive either on a pallet or in a van. Drivers are always requested to call 1 hour ahead of delivery.
Included in the delivery
Same day collection from Unit 15, Havenbury Industrial Estate, Station Road, Dorking, Surrey, RH4 1ES is available. Just let us know when you intend to arrive so the marquee can be ready and waiting for you.
Most of our marquees are sent out using a pallet network. A small lorry will arrive and tail-lift the pallet off of the lorry. They will then move the pallet using a pallet-truck as close to where you would like it as possible.
Yes, all prices include VAT at 20%
PE (polyethylene) is like tarpaulin material and comes in 80-240gsm (grams per square metre) where the heavier the material the thicker it is and the longer lasting it is. Poly/PVC is seen as a halfway house between PE and PVC. It generally only has a PVC coating on one side. We do not use poly/PVC as it is an inferior product to 100% PVC.
100% PVC is the premier marquee material although can come in many different qualities. At DIY Marquees we only use Duracoretex™ PVC for added durability.
Marquee material is measured in weight, gsm stands for grams per square metre so one of the materials we use is 500grams per square metre PVC. Unfortunately that only tells half of the story as PVC is made up of many layers/coatings and the strength comes from the core material used (ie before the layers are added). We only use Duracoretex™ PVC with a reinforced core but there are much cheaper options available with a weaker core. Just because a fabric says 500gsm PVC doesn’t mean it’s heavy duty.
Eaves braces connect between the eave purlin and the mid-purlin of the metalwork. Over time marquees can suffer from water pooling on the roofs, eaves braces drastically reduce the chances of this occurring and lengthen the expected lifespan of the marquee.
Yes with all commercial, professional and deluxe marquees. They are a recommended extra on party tent and classic ranges. Ground bars add stability to any structure which is why we recommend them.
No but if you aren’t using tie downs then you will require alternative equipment for anchoring the marquee down.
Yes though marquees always need anchoring down so you will need to use heavy weights or drill anchoring points in to the hard surface.
We are trying to give an indication of when you could use the marquee so you can choose a marquee that will meet your expectations. No marquee should be used in extreme weather conditions but the added features and strength in our commercial, professional and deluxe marquees means they can be erected for longer than our party tents or classic range.
No but we’re working on it!
Yes, our marquees are modular so you can simply buy 1 or more extension bays and a larger roof, please call our office on 01306 876767.
Yes, the easiest way to do this is to purchase a smaller roof (all metalwork and side panels are universal), please call our office on 01306 876767.
Yes, purchase a catering partition and you can split your marquee up in to smaller areas, please call our office on 01306 876767.
Yes, using our guttering kits you can join several marquees side by side or end to end very easily. Guttering kits are included free of charge with any multiple purchase of marquees.
No, I’m afraid not as the cost of manufacturing a bespoke structure is simply uneconomical.
The honest answer is we simply don’t know as there’s not a testing facility large enough. Marquee hire companies have successfully used our marquees in some of the worst weather possible but all we can state is that our demo marquees have been up in a partially sheltered area in wind speeds of up to 30 mph with our tie downs in place and all sides fastened without any problems.
Yes, usually dispatched within 24 hours. As former marquee erectors we know that if an accident happens you need the part to arrive urgently to stay in business. Unfortunately our spare parts are only suitable for DIY Marquees so if you need spares for a different marquee ours are unlikely to be compatible.
Yes absolutely. Unless the range has been discontinued completely (and even then it’s worth asking) you can buy any replacement part for your marquee. When designing any new feature in a range we always try to make it backwards compatible to look after existing customers.
We recommend you use a shipping company near you to arrange collection from our factory in Dorking – we can supply the dimensions and weight of your order for shipping purposes.
Yes, we use a verified SSL certificate for all transactions. When arriving at the payment pages you will see some or all of the following to show the site is secure: a padlock will appear in your browser, the bar at the top of your browser will turn green and/or the address will change from https to https.
Yes though please be aware that in poor weather marquees perform much better with all side panels on (to avoid the effect of a large umbrella).
We will gladly offer advice by phone (01306 876767) or by email. However our marquee packages are designed for starting your own hire business or setting up your own marquee wedding or party.
We design our marquees using our extensive experience in the marquee hire industry. We offer a range of marquees suitable for any occasion, the heavier duty marquee ranges like our commercial, professional and deluxe ranges include additional features to make them more durable and flexible – ideal for the marquee hire industry.
Marquees are usually dispatched within 1 working day and sent out on a 2 day service (overnight incurs a small surcharge). You will be told when ordering (orders by phone) or by email (online orders) when to expect delivery of your marquee(s). They will arrive on a pallet and the delivery company will use a pallet truck to wheel it as close to the house as possible – unfortunately they cannot unpack the pallet or transport it on soft surfaces.
Yes, all PVC and lining fabrics are flame retardant to BS 5438 & BS 7837 with copies of certificates supplied with every purchase the only exception is the PE fabric used in our Party tent range that is not flame retardant. Please note that British Standards on flame retardancy are far tougher than European tests. From experience we have found that just because fabric passes a European or American flammability test (DIN, M1/M2 for eg) does not mean it will pass the British one and may invalidate any insurance.
No. We’ve designed our marquees to be strong, durable but importantly easy to erect. Our most popular Commercial Marquee -6mx12m takes 3 people 3-4 hours initially but with experience 2 people can take as little as 2 hours.
We can but our marquees are so easy to put up they generally aren’t necessary. We supply step by step instructions with photographs at each stage, an online video and phone support should you have a problem.
Dimensions of storage space are specified on each product page. In general a DIY Marquee will usually fit in to any estate car or 4×4 vehicle. Smaller cars may have boxes overhanging the back and vans can usually transport several DIY Marquees at a time.
Not on the day! Ideally several days before to allow time for decorating the marquee and in case of any problems. If you’re laying flooring don’t worry about leaving it down for several days – grass is tough stuff and will soon recover.
Rain is a product of the condensation of atmospheric water vapour that is deposited on the earth’s surface. It forms when separate drops of water fall to the Earth’s surface from clouds. Oh, and your marquees are waterproof with a rain skirt to take the water away from the base.
Yes for our commercial, professional and deluxe ranges -these can be ordered separately or as an upgrade to windows.
Certainly. We realise delivery costs are expensive so welcome anyone picking their marquees up from our factory.
Our green marquees use the exact same 38/42mm steel framework and thick 500gsm Duracoretex PVC covers. The only difference is the colour.
The strongest, most durable and impressive range of marquees we can supply. Our 6x34m DIY Deluxe marquees use our thickest 650g/m² PVC Roof & side covers alongside our strongest 50mm diameter galvanised steel framework (the same diameter as scaffold tube).
Much like our premier & professional ranges uses a durable frame that includes ground-bars & roof braces for added strength, eave-braces to prevent water pooling and gable uprights for added wind-resistance. Deluxe marquees also have leg-braces and keep to our interchangeable sides system and envelope style roof but with a three panel gable and true 5 purlin roof design.
Taller at 2.3m leg height, ultimate marquees provide more spacious-feeling eaves. We believe this to be the peak of steel frame marquee design.

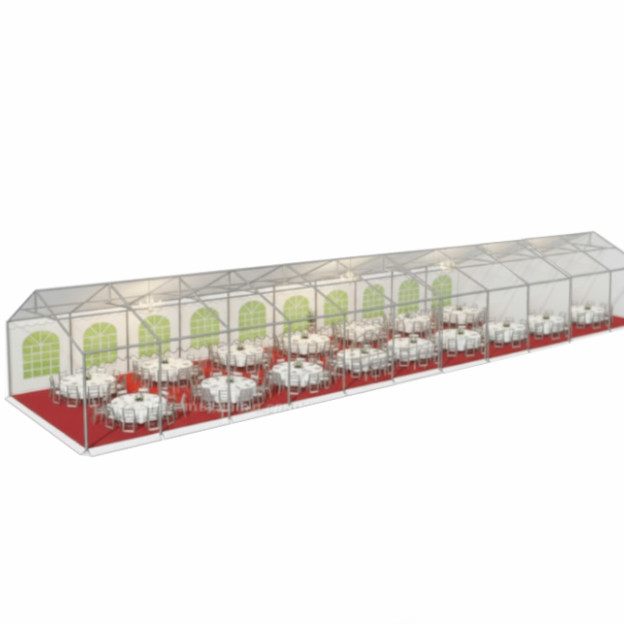

How many people can you fit in a 6x34m marquee?
A 6x34m marquee can fit up to 220 people seated or 330 people standing. Marquee seated capacity is calculated by using 5ft 6in round tables as is common in the marquee hire industry. This is the most efficient way to seat your guests to maximise space. Each 3x3m section of the marquee can fit 10 people at a 5ft 6in round table.
Standing capacity is calculated at 1.5X the seated capacity giving guests just under 1m square for dancing and space to move around.
| Capacity seated | 140-220 people |
|---|---|
| Capacity standing | 180-330 people |
| Size | 6x34m |
|---|---|
| Width | 6.00m |
| Length | 34.00m |
| Height at top of leg | 2.30m |
| Height at apex | 3.30m |
| Entrance dimensions | Approx 2.30m x 2.00m, anywhere on the marquee. |

Our marquee covers use rip-stop technology making them tear resistant and long-life. There are many types of marquee PVC but we make sure only to use high-quality Duracoretex™ material. Covers are 100% waterproof with high-frequency welded seams, fire retardant to to BS5438 & BS7837 and UV stabilised.
Unlike other manufacturers we design our marquees with the gable triangle incorporated into the rest of the roof. This makes the end of the marquee more wind-resistant as it reduces the size of the end panel and therefore billowing in windy conditions.
| Roof material | 650gsm PVC |
|---|---|
| Sides material | 650gsm PVC |
| Tearing-strength | 1600N | Seams | High-frequency welded & reinforced |
| Flame retardant | Yes to BS5438 & BS7837 |
| UV stabilised | Yes |
| Rain-skirt | Yes |
| Wind-stop Velcro sealed sides | Yes |
| Waterproof | 100% waterproof |

Using galvanised steel poles mean that the framework is protected from corrosion and rust. Unlike powder coated frames a scratch or chip does not fundamentally compromise the coating. Whereas powder coated frames allow water to spread beneath the rest of the surface.
Galvanised steel is also easier to repair and maintain. If the framework becomes dull after a few years it can easily be refreshed with a galvanising spray.
| Framework Material | Galvanised steel pipe |
|---|---|
| Steel used in pipes | 50mm diameter, 2mm thick |
| Steel used in connectors | 54mm diameter, 2m thick |
| Ground bars | Included |
| Roof braces | Included |
| Eave braces | Included |
| Leg braces | Included |
| Gable uprights | Included |
Assembly instructions can be downloaded here. Alternatively give us a call on 01306 87 67 67 and we’ll email you a copy.
| Minimum number of people to erect | 4 |
|---|---|
| Ideal number of people to erect | 5-6 |
| Time to erect | 7-8 hours on average |
We will contact you within 1 working day (usually immediately) to confirm the delivery day (usually 2-3 working days). If you have any preference on delivery day please let us know and we will happily arrange delivery accordingly.
Your marquee will arrive either on a pallet or in a van. Drivers are always requested to call 1 hour ahead of delivery.
Included in the delivery
Same day collection from Unit 15, Havenbury Industrial Estate, Station Road, Dorking, Surrey, RH4 1ES is available. Just let us know when you intend to arrive so the marquee can be ready and waiting for you.
Spare parts are stocked for all of our marquees. Parts can be purchased and delivered usually within 2-3 working days. It is important to be able to maintain your marquee and repair it in case it becomes damaged. Any part including connectors, poles, braces, walls and even the roof can be replaced.
PVC can also be repaired using a high strength vinyl cement. We can supply the vinyl cement with pre-cut patches to repair the PVC.
Finance available! Finance available on orders over £500. Our finance partners currently offer finance to business customers only.
| Weight | 1200 kg |
|---|---|
| Dimensions | 200 × 120 × 100 cm |
| Width (metres) | 6m |
| Length (metres) | 34m |
| Side Height | 2.3m |
| Apex Height | 3.3m |
| Cover material | 650gsm PVC |
| Frame | Ultimate 54mm |
| Capacity Seated | 225 |
| Capacity Standing | 320 |
| Fire Retardant | Fire Retardant to BS5438 & BS7837 |
| Ground Bars | Included |
| Roof Braces | Included |
| Eaves Braces | Included |
| Gable Uprights | Included |
| Leg Braces | Included |
| Tensile Strength | 1843N |
| Seams | Welded & Reinforced |
| Rain Skirt | Yes (on all 4 sides) |
| Edge of Roof Style | Wave-drape |
| Colour | White |
| Step by Step Instructions | Yes |
| Warranty | 12 Months Manufacturers Warranty |
| Spare Parts Available | Yes |
| Metalwork Diameter | 50/54mm |
| Interchangeable Sides | Yes |
| Linings | Available |
| Roof angle | 20 degree pitch |
| Sides | Sides Included |
| Style | Clear Span |
Our customer’s events matter to us. That’s why we strive to offer as much information and advice as possible at every step. These reviews reflect that dedication.
Many thanks – marquee is a sound investment. Looked as good up as on the website."
– T Marquees, London
Everyone commented on the excellent marquee. A helpful and great firm to deal with."
– Mr & Mrs K, Ireland
DIY marquees are superior – easier to lift, thicker walls, well made. We'll switch all our stock."
– S Marquee Hire
Thanks for your help and guidance – when we need more marquees, you'll be first on our list."
– PP Marquees
We have an extensive library of event planning articles that are based on years of experience in the marquee hire trade.

There are usually two ways of connecting a marquee to a house:
1) butting the marquee directly up to the house so guests walk straight from one in to the other or
2) using a walkway to connect the two together.
Read more

No, a marquee is far more wind resistant with the sides on rather than off. For some reason there are many people who believe that leaving the sides off a marquee ‘lets the wind pass through’. I will try to explain below why this is not true and why leaving the sides off of a marquee actually makes it far more susceptible to the wind than leaving the sides on.
Read more

Heavy weights: Using heavy weights strapped to a marquee is the most popular method for anchoring marquees down on hard surfaces. Any heavy weight should be strapped directly to the marquee, try and avoid using straps down to a weight a short distance away from the marquee in case the weight moves and the strap can loosen. There are a number of different weighting options.
Read more

Read more

Marquees are only designed as temporary structures, if you have them up for a long time then certain precautions should be taken. Checking it regularly for signs of wear & tear, checking the strength of bungees, making sure there is no water or snow gathering on the roof, not leaving it up in extreme weather conditions. All common sense stuff really.
Read more
For splashed on mud you need to get hold of a power washer and a big tub of traffic film remover (TFR – basically concentrated washing up liquid, available from auto factors and used for cleaning lorry sides). Steam cleaners make life a bit easier compared to power washers but they’re a lot more expensive and a lot more problematic (I speak from experience).
Read more
This price is to buy the marquee (we do not offer a hire service)
All prices include VAT
We will contact you within 1 working day (usually immediately) to confirm the delivery day (usually 2-3 working days). If you have any preference on delivery day please let us know and we will happily arrange delivery accordingly.
A 30cm wide, 15m long guttering kit (worth £55 + VAT) will automatically be added free of charge to any multiple order – please note that this will not appear in your cart but will be added to your order before dispatch.
